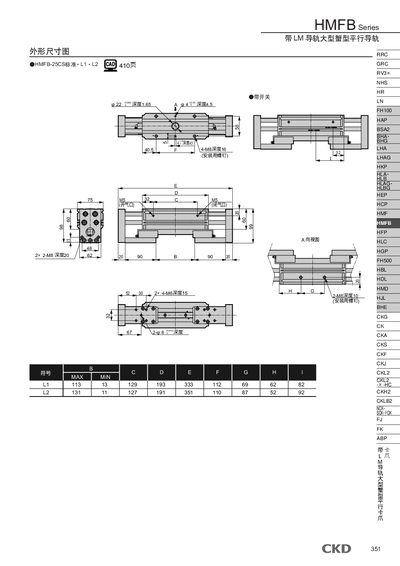

This document contains 2D drawings of the HMFB series products, including dimensions and installation hole positions.
This leaflet provides the outline dimensions for the HMFB series of large‑crab parallel linear guide rails. Each variant (HMFB‑25CS, HMFB‑32CS, HMFB‑40CS) includes a detailed dimension drawing and a list of mounting screw sizes and depths.
The document lists the required installation screws (M5, M8, M10, M12) and their insertion depths for each model, as well as reference part numbers used throughout the series. This manual is written in Chinese.
| HMFB-25CS mounting screws | 2 × 2‑M8, depth 20 mm |
|---|---|
| HMFB-40CS mounting screws | 2 × 2‑M12, depth 25 mm |
The HMFB-25CS uses two 2‑M8 screws with a mounting depth of 20 mm.
The HMFB-40CS uses two 2‑M12 screws with a mounting depth of 25 mm.
