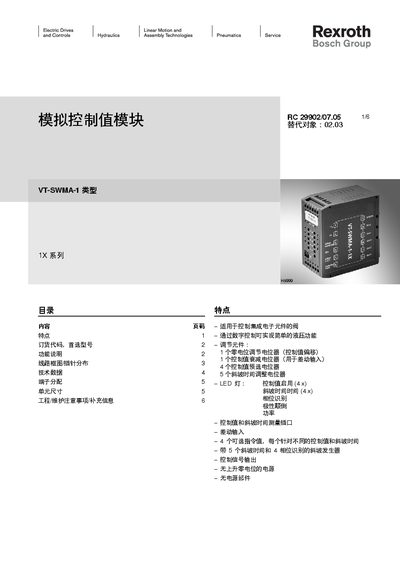

VT-SWMA-1 is an analog control value module that is used to control valves with integrated electronic components. The module can be used to implement simple hydraulic functions through digital control. It has 1 zero-voltage adjustment potentiometer (control value offset), 1 control value attenuation potentiometer (for differential input), 4 control value preselection potentiometers and 5 ramp time adjustment potentiometers. The module also has control value and ramp time measurement sockets, differential input, 4 optional command values, a ramp generator with 5 ramp times and 4 phase recognitions, control signal output, non-rising zero voltage power supply and no power components.
The VT‑SWMA‑1 is a hydraulic analog control module that provides configurable control signals and phase selection for precise motion control. It operates from a 24 VDC supply and includes LED indicators for status monitoring.
The manual details safety precautions, wiring diagrams, electrical parameters, mechanical dimensions, and environmental limits, helping users install, configure, and maintain the module safely and efficiently.
| Supply voltage | 24 VDC +40% / -10% |
|---|---|
| Power consumption | 12 VA |
| Current consumption | 10.5 A |
| Dimensions (W×H×D) | 40 mm × 79 mm × 85.5 mm |
| Weight | 0.3 kg |
The module is powered from a 24 VDC source with a tolerance of +40 % and –10 %.
The module consumes approximately 12 VA of power.
The module measures 40 mm × 79 mm × 85.5 mm (W×H×D).
