This document introduces the mechanical overview, model specifications, machine component names, power line connection and power selection, tension rod and spring selection and installation, winding method and precautions on the tensioner, and tensioner adjustment and usage of the SET-B servo tensioner.

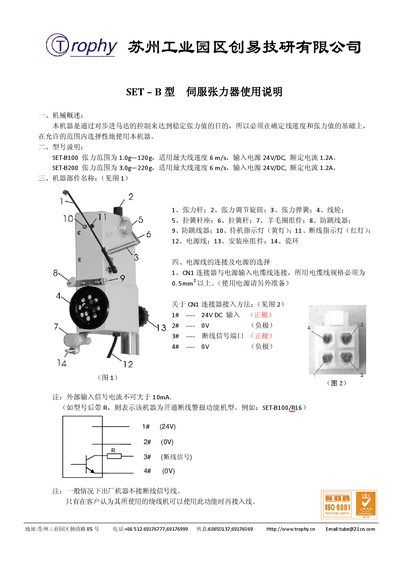

This manual describes the mechanical overview and basic operation of the SET B servo tensioner. The device controls tension to a preset value by adjusting speed and force, and requires a stable 24 VDC power supply.
It includes model specifications, wiring diagrams, installation steps, color‑coding of wires, and safety precautions. The document also explains the function of the standby (yellow) and fault (red) indicator LEDs and provides parameter tables for both SETB100 and SETB200 variants. This manual is written in Chinese.
| SETB100 Force Range | 1.0 g–120 g |
|---|---|
| SETB200 Force Range | 3.0 g–220 g |
| Maximum Belt Speed (both models) | 6 m/s |
| Input Voltage | 24 VDC |
| Rated Current | 1.2 A |
It requires a 24 VDC power supply.
The rated current is 1.2 A.
The yellow LED shows standby status, while the red LED signals a fault condition.
Both models support a maximum belt speed of 6 m/s.
