RA-PH800 is a professional indoor pan/tilt head product launched by Ronghua Electronics. It has the characteristics of maximum 254 pan/tilt heads controlled by the same system, supporting Panasonic, Sony, Hitachi, Ikegami, etc. 3CCD camera.
The RA PH800 is a multi‑function vector indoor cloud table that supplies power and control to compatible cameras, supports LAN power output, CPT switch output, and hub wiring for cost‑effective installation. It can control up to 254 gimbles, offers both independent and centralized control, and works with Panasonic, Sony, and Hitachi cameras.

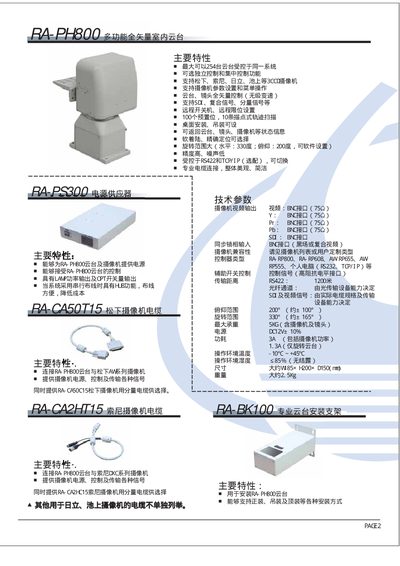

Technical details include a 330° pan range, 200° tilt range, 5 kg maximum load, RS422 transmission up to 1200 m, DC 12 V power supply, and operation in temperatures from –10 °C to 45 °C with humidity below 85%. The unit measures roughly 85 mm × 200 mm × 150 mm and weighs about 2.5 kg. This manual is written in Chinese.
| Pan range | 330° (≈ +165°) |
|---|---|
| Tilt range | 200° (≈ +100°) |
| Maximum load | 5 kg (including camera and lens) |
| Power supply | DC 12 V ±10% |
| Power consumption | 3 A (including camera power) |
| RS422 transmission distance | 1200 m |
| Operating temperature | -10 °C to 45 °C |
| Operating humidity | <85% (no condensation) |
| Dimensions | ≈ W85 mm × H200 mm × D150 mm |
| Weight | ≈ 2.5 kg |
The RA PH800 supports 100 preset positions.
Up to 254 gimbals can be controlled by a single system.
The system provides BNC video outputs for Y, Pr, Pb, and SC signals, as well as composite video input.
