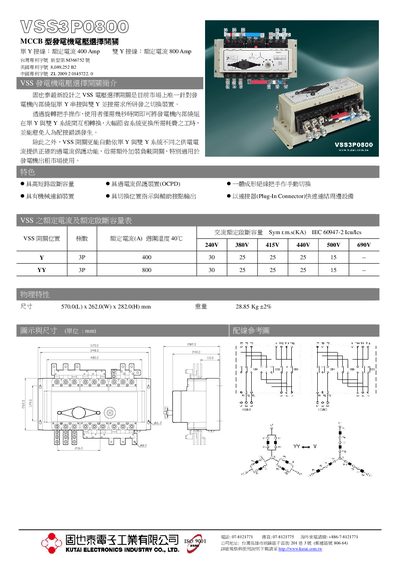

VSS3P0800 MCCB type generator voltage selection switch is the latest design of KUTAI,Taiwan. It has high short-circuit breaking capacity, mechanical interlock device, overcurrent protection device (OCPD), switch position indication and auxiliary contact output, integral insulated handle for manual switching, and quick connection to peripheral devices through connector (Plug-In Connector).
This manual describes the VSS series voltage selection switch designed for generator applications. The switch allows manual conversion between single‑phase and double‑Y systems using a rotary handle, reducing the time and effort required for system changes.
The document provides technical data such as rated currents, supported voltages, dimensions, weight, and integrated over‑current protection (DOCPD). It also details mechanical interlock features, connector types, and patent information relevant to the product. This manual is written in Chinese.
| Operating Temperature | 40 °C |
|---|---|
| Supported Voltages | 240 V, 380 V, 415 V, 440 V, 500 V, 690 V |
| Dimensions (L×W×H) | 570 mm × 262 mm × 282 mm |
| Weight | 28.85 kg |
It uses a rotary handle for manual switching between single‑phase and double‑Y systems.
The switch measures 570 mm × 262 mm × 282 mm and weighs 28.85 kg.
Yes, it includes an integrated over‑current protection device (DOCPD).
