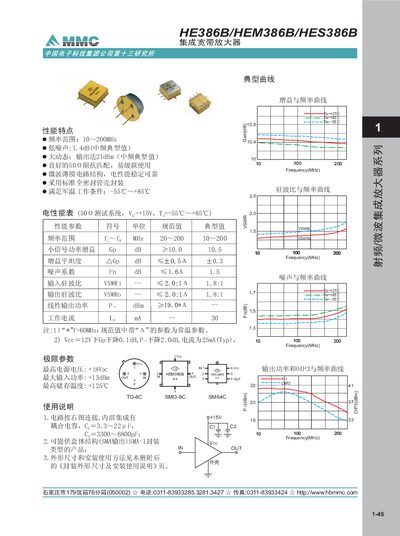

HE386B/HEM386B/HES386B integrated wideband amplifier, working frequency is 10-200MHz, low noise, large dynamic range, good 50Ω impedance matching, easy to cascade.
This manual describes the HE386B series broadband amplifiers, covering typical performance characteristics such as frequency range, gain, output power, and VSWR. It also lists the electrical and environmental specifications required for proper operation.
Installation notes, package dimensions, and recommended external components are provided, along with reference curves for gain, output power, and third‑order intercept point (OIP3). The document includes contact information for technical support. This manual is written in Japanese.
| Frequency range | 10‑200 MHz |
|---|---|
| Small‑signal gain (Gp) | 10.0 dB (typ) |
| Maximum output power | 21 dBm (typ) |
| Supply voltage | 12 V |
| Package types | TO‑8C, SMO‑8C, SM64C |
| Input filter capacitance | 3300‑6800 pF |
The amplifier operates over a frequency range of 10 MHz to 200 MHz.
Typical small‑signal gain is about 10 dB.
The amplifier is offered in TO‑8C, SMO‑8C, and SM64C packages.
