HE575C integrated wide-band amplifier, frequency range 10~2000MHz, good 50Ω impedance matching, easy to cascade, microwave thin-film circuit structure, stable and reliable electrical performance, using standard full-sealed TO-8C metal tube shell packaging, meets the military temperature working conditions: -55℃~+85℃.

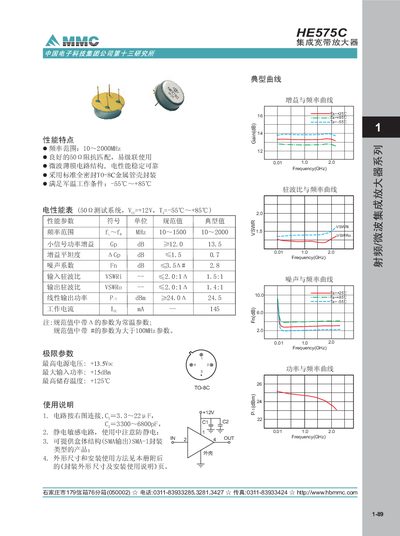

This manual describes the HBM HE575C integrated broadband amplifier. It lists key performance data such as a frequency range of 10‑2000 MHz, small‑signal gain of 12‑13.5 dB, output power around 24 dBm, and input/output VSWR values.
The document also gives installation and handling instructions, including a +12 V supply requirement, an operating temperature range of -55 °C to +85 °C, SMA‑1 package type, and precautions for static discharge and mounting. This manual is written in Chinese.
| Frequency range | 10‑2000 MHz |
|---|---|
| Small‑signal gain | 12‑13.5 dB |
| Output power (Pout) | 24.0‑24.5 dBm |
| Input VSWR | 2.0:1 (typ) / 1.5:1 (max) |
| Output VSWR | 2.0:1 (typ) / 1.4:1 (max) |
| Operating temperature | -55 °C to +85 °C |
| Maximum storage temperature | +125 °C |
| Current consumption | 1‑145 mA |
| Package type | SMA‑1 |
The HE575C operates from 10 MHz up to 2000 MHz.
It can operate from –55 °C to +85 °C.
