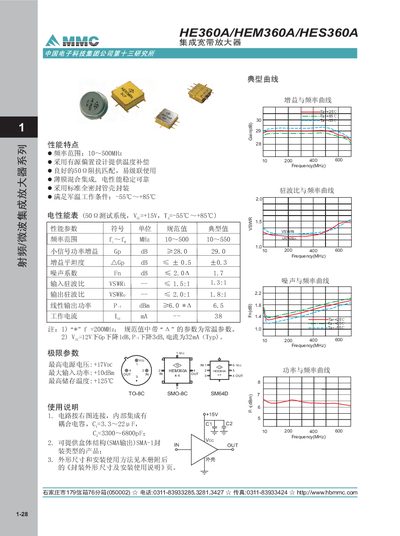

This product is the HE360A/HEM360A/HES360A integrated broadband amplifier produced by HBMMC company. The frequency range is 10-500MHz. It adopts active bias design to provide temperature compensation. It has good 50Ω impedance matching and is easy to cascade. The electrical performance is stable and reliable. It adopts standard full-sealed tube shell packaging and meets military temperature working conditions: -55℃～+85℃.
This manual describes the HE360A/HEM360A/HES360A integration broadband amplifier, highlighting its wide frequency coverage (10‑500 MHz) and high gain (~29 dB). It outlines key performance characteristics such as low VSWR, stable output power, and operation over a temperature range of –55 °C to +85 °C.
Installation instructions cover connector types (SMA), recommended PCB layout, and mechanical dimensions. The document also includes a performance table with typical values for gain, VSWR, output power, and temperature limits, helping users integrate the amplifier into RF systems. This manual is written in Japanese.
| Typical Gain | 28.9 dB |
|---|---|
| Typical Output Power | 6.0 dBm |
| Operating Temperature Range | -55 °C to +85 °C |
| Maximum Input Power | +10 dBm |
Typical gain is about 28.9 dB.
The device works from –55 °C to +85 °C.
