This document introduces the features and characteristics of the RF/microwave integrated amplifier series products, including frequency range, output dynamic range, impedance matching, etc. The series products adopt microwave thin film circuit structure, which has stable and reliable electrical performance. Suitable for military temperature working conditions.

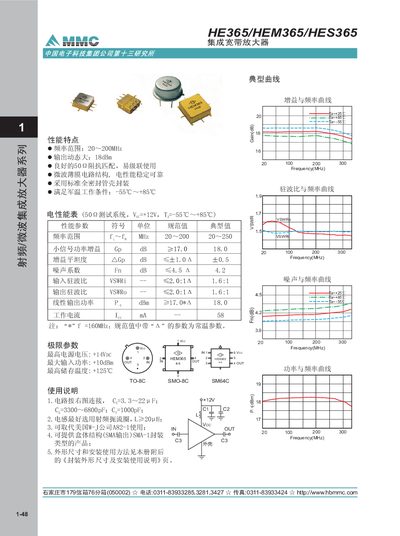

This manual describes the HE365/HEM365/HES365 integration broadband amplifier, covering its performance features, typical gain curves, and frequency characteristics. It outlines the operating frequency range, output power, and VSWR specifications, and includes recommended component values for optimal performance.
The document also provides mechanical dimensions, mounting instructions, and wiring details, along with environmental limits such as supply voltage and storage temperature. Users can follow the step‑by‑step usage guidelines to install and configure the amplifier in their RF systems. This manual is written in Japanese.
| Frequency range | 20–200 MHz |
|---|---|
| Typical output power | 18 dBm |
| Small‑signal gain | 17–18 dB |
| Input VSWR | ≤ 2.0:1 |
| Output VSWR | ≤ 2.0:1 |
| Maximum input power | +10 dBm |
| Maximum supply voltage | +14 V |
| Maximum storage temperature | +125 °C |
The amplifier operates over a frequency range of 20 MHz to 200 MHz.
The typical output power is 18 dBm.
