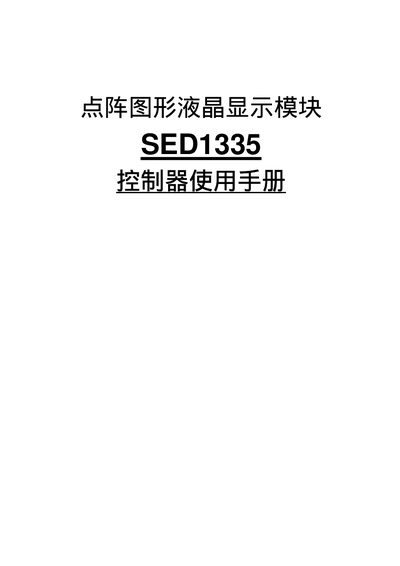

The Epson SED1335 LCD controller manual provides detailed information on the hardware configuration, interface pins, and system settings required to operate the display module. It includes diagrams of the pin assignments, timing specifications for both 8080 and 6800 MPU families, and guidance on initializing the controller.
Safety and handling instructions are also covered, emphasizing static‑discharge protection, proper connector handling, and storage conditions to ensure reliable operation and longevity of the LCD module. This manual is written in Chinese.
| Display resolution | 640 × 256 dots |
|---|---|
| Operating temperature range | -10 °C to +35 °C |
It can drive a display of up to 640 × 256 dots.
Handle the module with grounded tools, avoid touching pins directly, and keep humidity above 60 % to reduce static buildup.
