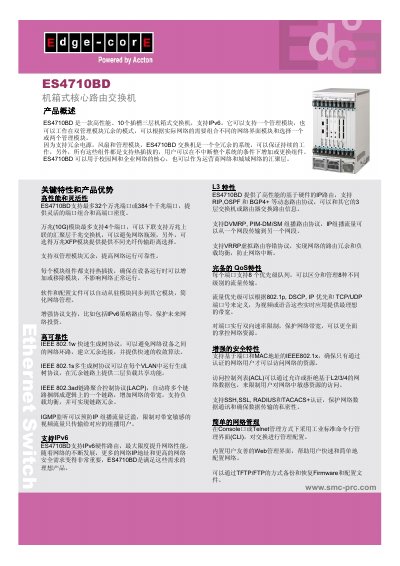

ES4710BD is a high-performance, 10-slot three-layer chassis switch that supports IPv6. It can support one management module or work in a dual management module redundant mode. It can combine different network interface modules according to actual network needs and select one or two management modules. Because of supporting redundant power supply, fan and management module, ES4710BD switch is a fully redundant system that can guarantee continuous work. In addition, all these components are hot-swappable, and users can add or replace components without interrupting the entire system. ES4710BD can be used in the core of campus networks and enterprise networks, and also as a convergence layer for operator networks and metropolitan area networks.
The ES4710BD is a chassis‑type core router switch designed for campus, enterprise, carrier and metro networks. It offers up to 32 10‑GbE ports or 384 1‑GbE ports, full redundancy for power, fans and management modules, and hot‑swap capability for all components.
Key features include hardware‑based IP routing with RIP, OSPF, BGP4+ and IPv6 support, advanced QoS with 8 priority queues per port, extensive security functions such as IEEE 802.1x, ACLs, RADIUS/TACACS+, and management via CLI, web GUI, SNMP and TFTP/FTP. This manual is written in Chinese.
| Slots | 10 |
|---|---|
| 10G ports | 32 |
| 1G ports | 384 |
| Power input | 90‑264 VAC, 50‑60 Hz |
| Power output | 600 W (max) |
| Dimensions (mm) | 797 x 436 x 478 |
| Operating temperature | 0°C to 40°C |
| Humidity | 10% to 90% non‑condensing |
Yes, all components support hot‑swap, allowing addition or replacement without interrupting the system.
It supports hardware‑based IP routing with RIP, OSPF, BGP4+ and IPv6 protocols such as RIPng, OSPFv3, and MBGP4+.
