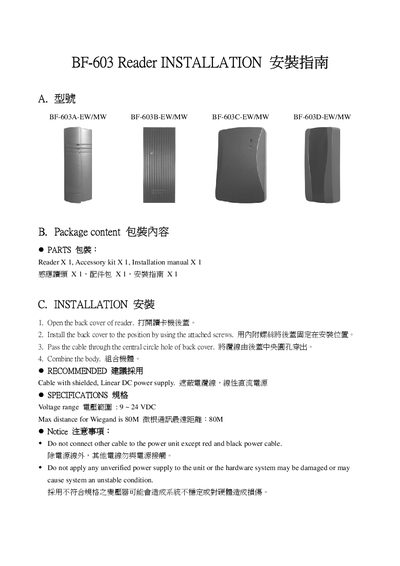

This guide provides step‑by‑step instructions for installing the BF-603 Reader. It details how to open the back cover, secure it with the supplied screws, and route the cable through the central hole.
The document also lists the required power supply specifications, wiring colour codes for the RJ‑45 connections, and recommended cable types. It includes a brief specifications table and notes on safe handling of power cables.
| Voltage range | 9 ~ 24 VDC |
|---|---|
| Maximum Wiegand distance | 80 m |
The reader operates on a voltage range of 9 to 24 VDC.
The maximum distance for Wiegand communication is 80 meters.
