XIO9030HDEMB-2AES-FS is an HD/SD-SDI digital signal and 2-way digital audio Embedder, which supports 1-way BB signal input, used for digital signal equalization, amplification or frame synchronization processing and output. It can monitor, pass through or insert EDH function for high-definition digital signals. It supports 1-way HD/SD-SDI signal and 2-way digital audio input. After embedded processing, 4 independent HD/SD-SDI digital signals are output. Video input and output interfaces use BNC method. Audio input uses BNC unbalanced interface. The module can automatically identify the indicator module position.

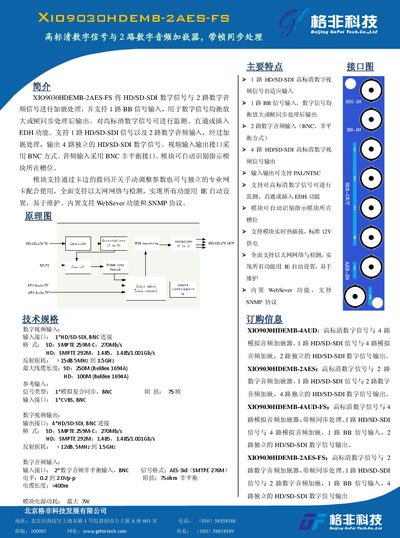

This document describes the XIO9030HDEMB-2AES-FS module, which combines HD/SD‑SDI video with two AES audio channels and additional BB and HD/SD‑SDI outputs. It outlines the supported video formats, connector types, power requirements and optional network functions.
Key functions include EDH processing, web‑server management, SNMP support, and automatic source selection. The module is designed for integration in broadcast and professional video systems, offering balanced audio input and multiple independent video outputs. This manual is written in Japanese.
| SD video format | SMPTE 259M‑C, 270 Mb/s |
|---|---|
| HD video format | SMPTE 292M, 1.485 Gb/s |
| Video input connector | 1 × BNC (HD/SD‑SDI) |
| Audio input | 2 × AES‑3 (balanced) via BNC |
| Reflection loss (SD) | >15 dB, 5 MHz–1.5 GHz |
| Reflection loss (HD) | >12 dB, 5 MHz–1.5 GHz |
| Power supply | 12 V |
| Network features | WebServer and SNMP support |
It supports SD video (SMPTE 259M‑C, 270 Mb/s) and HD video (SMPTE 292M, 1.485 Gb/s).
A single BNC connector carries the HD/SD‑SDI video input.
Yes, it includes a web‑server function and SNMP support.
The module provides two balanced AES‑3 audio inputs via BNC connectors.
