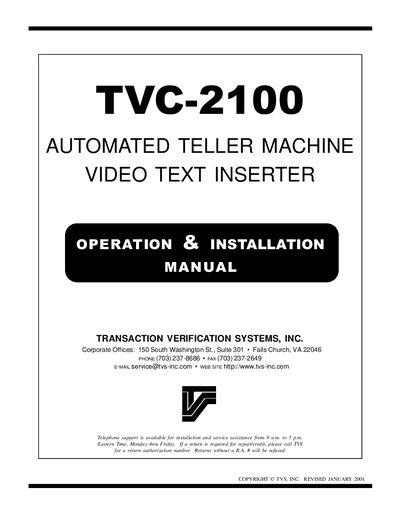

This document is a guide for the installation and service of the product from TRANSACTION VERIFICATION SYSTEMS, INC. The product is an Automated Teller Machine Video Text Inserter that captures ATM transaction information in real time and combines it with video imagery. The document describes the features and characteristics of the product.
The TVC-2100 is an ATM video text inserter that captures transaction data and overlays it on video in real time to help prevent fraud. It supports standard NTSC video, multiple ATM protocols, and provides alarm outputs for video switching systems.\n\nThe manual covers hardware installation between the ATM and modem, connector wiring, power requirements, programming via a touch‑tone telephone, on‑screen menu options, alarm cable usage, troubleshooting common video or protocol issues, and the five‑year warranty terms.
| Power Input | 12 VDC, 1.5 A |
|---|---|
| Video Output | NTSC |
| Video Input | NTSC |
| Alarm Output Type | Open‑collector (dry‑contact) outputs |
| Baud Rate (default) | 4800 bps |
| Supported Protocols | Automatic detection for most ATM formats; manual setup for SDLC NRZI and IBM 3600 |
| Screen Clear Time (default) | 30 seconds |
| Alarm On Time (default) | 15 seconds |
