NORCO SHB-760 Industrial CPU Card Technical Guide

SHB-760 is an industrial CPU card with detailed specifications.

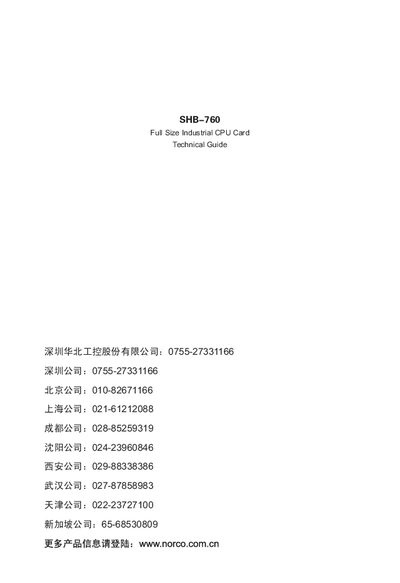

NORCO SHB-760 Industrial CPU Card Technical Guide - cover page
Brand
SHB-760
Category
Other device
Document type
User Manual
Language
Chinese
Pages
49
File format
PDF
File size
4.2 MB
Published
24 January, 2012
Updated
01 October, 2023
MD5 checksum
A067EB2A150CDEA558539B3FF2C01987
PDF
NORCO SHB-760 Industrial CPU Card Technical Guide PDF

About this manual

This guide describes the SHB-760 full‑size industrial CPU card, a low‑power PC/ISA board featuring an Intel Celeron‑M processor, integrated Realtek 10/100 Ethernet, and multiple I/O interfaces. It is intended for system integrators and technicians who need to install, configure, and maintain the board in industrial environments.

Key sections cover hardware installation, BIOS configuration, detailed interface specifications (USB, IDE, VGA, LVDS, TV‑OUT, COM, LPT, etc.), power requirements, environmental limits, and safety handling instructions. The document also lists the board’s mechanical dimensions and supported memory modules. This manual is written in Chinese.

What's inside

  • Product Overview
  • Hardware Installation
  • BIOS Configuration
  • Interface Specifications
  • Power Supply and Environmental Ratings
  • Safety and Handling Guidelines

Specifications

Dimensions122 x 338 mm
ProcessorIntel Celeron‑M 600 MHz (400 MHz FSB)
ChipsetIntel 852GM + ICH4
USB Ports6 × USB 2.0 (480 Mbps)
Power Consumption5–7 W typical
Operating Temperature0 °C to 60 °C

Frequently asked questions

What processor does the SHB-760 use?

It uses an Intel Celeron‑M processor running at 600 MHz with a 400 MHz front‑side bus.

How many USB ports are provided on the SHB-760?

The board provides six USB 2.0 ports.

What are the operating temperature limits?

The board is rated for operation from 0 °C up to 60 °C.
