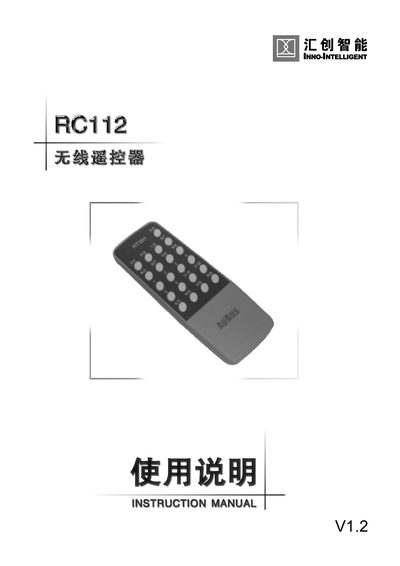

RC112 wireless remote controller is a multi-purpose remote controller produced by Inno-Intelligent Systems (SZ) Limited. It should be used with RC101 wireless control receiver module to remotely control ApBus intelligent control system, including lighting, electrical appliances, curtains and scenes.
The RC112 is a wireless remote designed for the ApBus smart control system. It works together with the RC101 wireless receiver to control lights, appliances, curtains, and preset scenes. The remote features 8 position keys, 6 code keys, 2 action keys, and 5 scene keys for flexible combination and scene control.
The manual explains how to program the remote via the RC101 ID channel, details battery requirements (12 V 23A), and lists technical specifications such as transmission frequency (433.92 MHz) and control distance (up to 30 m). Safety and handling notes are also included. This manual is written in Chinese.
| Power Supply | Battery (23A 12V) |
|---|---|
| Working Current | 20 mA |
| Transmission Frequency | 433.92 MHz |
| Transmission Power | 50 mW |
| Control Distance | 30 m (open space) |
| Frequency Deviation | ±150 kHz (max) |
| Dimensions | 125 × 43 × 17 mm |
The remote can control devices up to 30 meters in an open area.
