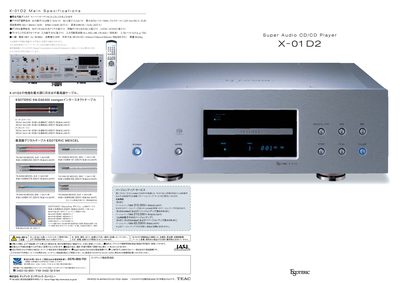

This document is an introduction to the product, including its features and characteristics.
The X-01D2 is a high‑end Super Audio CD/CD player featuring XLR and RCA analog outputs, optical and coaxial digital outputs, and a word‑sync BNC input supporting multiple sample rates. Its specifications include a 5 Hz–50 kHz frequency response, 116 dB S/N ratio, 0.0015 % THD and a maximum output level of 2.2 Vrms.
The leaflet also describes optional upgrade services, premium interconnect cables, and the internal high‑precision VRDS‑NEO turntable mechanism. Power consumption is 39 W, dimensions are 442 mm × 153 mm × 358 mm and the unit weighs about 25 kg. This manual is written in Japanese.
| Analog output terminals | XLR (2 ch) × 1, RCA (5.1 ch) × 1 |
|---|---|
| Maximum output level | 2.2 Vrms (RCA, XLR) |
| Frequency response | 5 Hz – 50 kHz (-3 dB) |
| Signal‑to‑noise ratio | 116 dB (JEITA) |
| Total harmonic distortion | 0.0015 % (1 kHz, JEITA) |
| Digital output terminals | Optical, Coaxial (RCA) |
| Word‑sync input format | BNC, 44.1/88.2/100/176.4 kHz |
| Power consumption | 39 W |
| Dimensions (W × H × D) | 442 mm × 153 mm × 358 mm |
| Weight | ≈ 25 kg |
The player provides one XLR (2‑channel) connector and one RCA (5.1‑channel) connector for analog audio output.
It includes an optical digital output and a coaxial digital output (RCA type).
The BNC word‑sync input accepts 44.1 kHz, 88.2 kHz, 100 kHz and 176.4 kHz sample rates.
The unit consumes 39 W of power.
