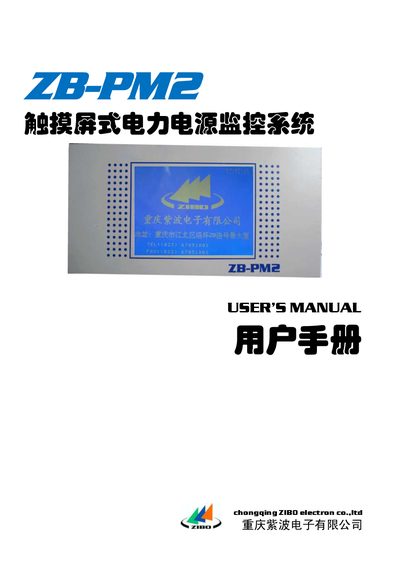

This document is the user manual for ZB-PM2 touch screen power supply monitoring system from Chongqing ZIBO Electronics Co., Ltd. The system includes intelligent high-frequency switch power supply system for power and intelligent battery management. The user manual provides an overview of the system, the main monitor, and the basic monitoring units.
The ZB-PM2 is a touch‑screen electric power‑supply monitor that provides real‑time control and management of charging and discharging processes. It integrates AC/DC conversion, battery monitoring, and safety alarms in a compact unit.
The manual describes system architecture, hardware dimensions, connection methods, charging programs, temperature monitoring, and periodic maintenance procedures. It also details the RS‑232/RS‑485 communication interfaces for integration with external controllers. This manual is written in Japanese.
| Dimensions (W×H×D) | 260 mm × 133 mm × 48 mm |
|---|
The ZB-PM2 measures 260 mm wide, 133 mm high, and 48 mm deep.
