Echomax XLT sensors use ultrasonic technology to measure the level of various solids. This sensor features a sealed aluminum surface, an integrated temperature sensor, self-cleaning and low maintenance costs, only 2-wire connection and easy installation.

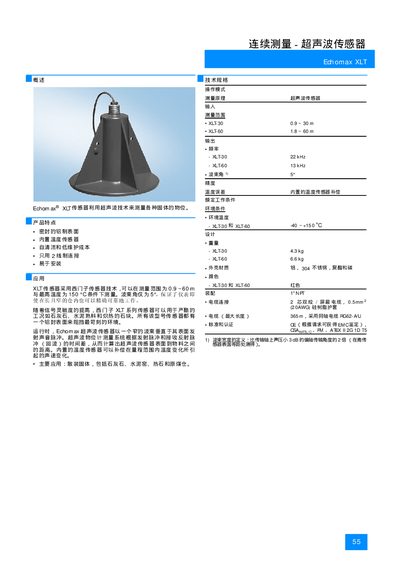

This manual describes the technical specifications of the Echomax XLT ultrasonic sensors, including measurement ranges of 0.9‑30 m for the XLT‑30 and 1.8‑60 m for the XLT‑60, output frequencies of 22 kHz and 13 kHz respectively, and a narrow 5° beam angle for precise level detection. The sensors are built with aluminum, 304 stainless steel, polyester and carbon materials, operate from –40 °C to +150 °C, and can be connected with cables up to 365 m using RG62‑ALU.
Installation guidance covers mounting options for solid bulk materials such as limestone, cement, and coal, as well as accessories like stainless‑steel brackets, flexible tubing, and NPT fittings. Order data, part numbers, and optional quick‑start guides are also provided. This manual is written in Chinese.
| Measurement range (XLT‑30) | 0.9 – 30 m |
|---|---|
| Measurement range (XLT‑60) | 1.8 – 60 m |
| Output frequency (XLT‑30) | 22 kHz |
| Output frequency (XLT‑60) | 13 kHz |
| Weight (XLT‑30) | 4.3 kg |
| Weight (XLT‑60) | 6.6 kg |
| Operating temperature range | –40 °C to +150 °C |
| Maximum cable length | 365 m |
| Construction material | Aluminum, 304 stainless steel, polyester, carbon |
The XLT‑30 measures from 0.9 m to 30 m, while the XLT‑60 measures from 1.8 m to 60 m.
The XLT‑30 outputs at 22 kHz and the XLT‑60 outputs at 13 kHz.
The sensor can be connected with a cable up to 365 m in length.
Accessories include stainless‑steel brackets, flexible tubing, NPT fittings, and optional mounting plates.
