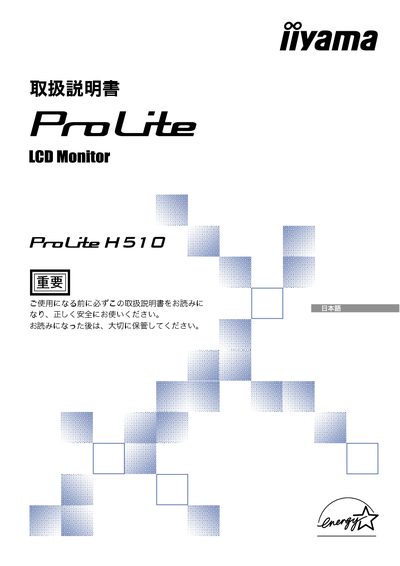

This manual explains how to safely install, operate, and maintain the Iiyama ProLite H510 LCD monitor. It includes safety warnings, proper handling of power and signal cables, and instructions for adjusting the panel height, angle, and rotation.
The guide also covers computer connection settings, menu navigation, power‑management features, and troubleshooting tips such as screen flicker or backlight issues. Technical specifications and optional video input options are listed at the end of the document. This manual is written in Japanese.
| Screen Size | 20.1‑inch |
|---|---|
| Maximum Resolution | 1600 × 1200 |
| VESA DDC2B Compatibility | Supported |
| Operating System Compatibility | Windows 95/98/2000/Me/XP |
| Electromagnetic Emission | Low EMF, Energy‑saving design |
| TCO Certification (H510) | TCO 03, MPR compliant |
| TCO Certification (H510‑B) | TCO 99, MPRT compliant |
| Digital Input | DVI‑I |
| USB Hub | USB 2.0 High‑speed |
| Panel Rotation | 90° rotation mechanism |
| VESA Mount | 100 mm × 100 mm |
Turn the power switch off, wait a moment, then turn it back on.
Do not place water, solvents, or any liquid containers near the monitor; remove them immediately if spilled.
