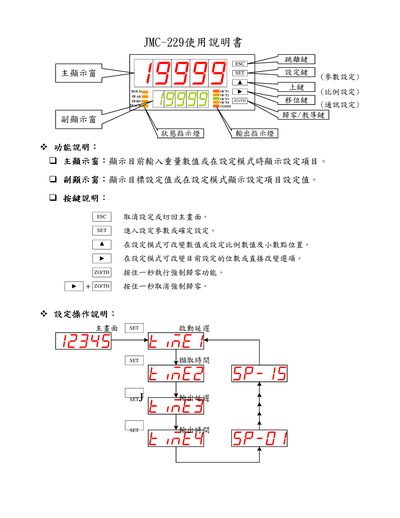

This is the user manual of JMC-229 sensor, which mainly introduces the function characteristics and usage methods of the sensor.
This manual describes the functions of the JMC-229, including how to set proportional, offset, averaging, and timer parameters. It explains the user interface, key operations, and calibration procedures such as zero and span adjustments.
The document also details communication settings, offering Modbus RTU and ASCII modes, supported baud rates, data length, stop bits, parity options, and address range. Parameter tables list limits for inputs, outputs, and timers, enabling proper configuration for various applications. This manual is written in Japanese.
| Supported baud rates | 19200, 9600, 4800, 2400 bps |
|---|---|
| Modbus address range | 1‑255 |
| Input range | -19999 to 99999 |
You can choose 19200, 9600, 4800, or 2400 bps.
Press the SET key for one second to start zero calibration.
The address can be set from 1 to 255.
