Qno 7/8WAN VPN Firewall User Manual

This is the user manual for Xiano 8WAN VPN Firewall with load balancing, bandwidth management, VPN and network security

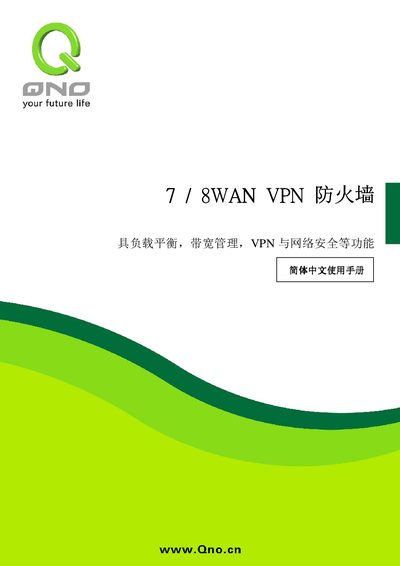

Qno 7/8WAN VPN Firewall User Manual - cover page
Brand
7/8WAN
Category
Network Switches
Document type
User Manual
Language
Chinese
Pages
210
File format
PDF
File size
2.2 MB
Published
17 January, 2012
Updated
30 September, 2023
MD5 checksum
CF784CC8A49386D59E27467A229E8E10
PDF
Qno 7/8WAN VPN Firewall User Manual PDF

About this manual

This manual describes the features and functions of the Qno 7/8WAN VPN Firewall, a multi‑WAN firewall designed for medium to large enterprises, internet cafés and community networks. It covers hardware installation, system settings, network connections, and security features such as VPN, QoS, and firewall rules.

Step‑by‑step procedures guide users through configuring WAN ports, LAN ports, DHCP, VLAN, NAT, UPnP, DDNS, and advanced functions like QVM VPN, SmartLink IPSec, and logging. The document also includes a troubleshooting appendix and contact information for technical support. This manual is written in Chinese.

What's inside

  • System Setup Process
  • Hardware Installation
  • Network Connection Settings
  • WAN and LAN Port Management
  • DHCP and IP Configuration
  • QoS Bandwidth Management
  • Firewall Rule Settings
  • VPN Virtual Private Network Configuration
  • Advanced Features (DMZ, UPnP, DDNS)
  • Log and System Monitoring

Specifications

ProcessorIntel XP425 533 MHz quad‑core
WAN PortsMultiple 10/100 Mbps RJ45 ports
LAN PortsMultiple 10/100 Mbps RJ45 ports plus 1 DMZ port
Supported VPN EncryptionDES, 3DES, AES‑128
QoS Capability10/100 Mbps QoS and VLAN switching

Frequently asked questions

What processor does the 7/8WAN VPN Firewall use?

It uses an Intel XP425 533 MHz quad‑core processor.

Which encryption algorithms are supported for IPSec VPN?

The device supports DES, 3DES, and AES‑128 encryption for IPSec VPN.

How can I change the login password and system time?

The login password and time can be modified in the ‘登录密码及时间的修改和设置’ section (page 5).
