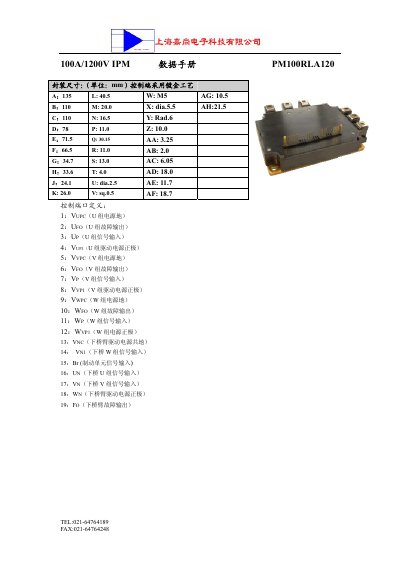

The PM100RLA120 IPM datasheet introduces the features and characteristics of this intelligent power module, including application areas, maximum ratings, mechanical and electrical characteristics, etc.
The PMI00ORLA120 is an intelligent power module (IPM) designed with an insulated substrate and integrated top‑drive and protection circuits, suitable for high‑frequency power conversion up to 20 kHz. It features a complete power output stage, built‑in top‑drive circuitry, and multiple protection functions such as short‑circuit, over‑temperature, and undervoltage protection.
The document provides detailed electrical ratings, mechanical dimensions, thermal characteristics, and recommended external components such as isolated power supplies, surge‑absorbing capacitors, and heat‑sink solutions. It also lists recommended optocouplers and other parts that Jiashang supplies. This manual is written in Chinese.
| Maximum DC bus voltage (Vdc) | 1000 V |
|---|---|
| Over‑voltage protection level | 800 V |
| Insulation voltage (Viso) | 2500 V |
| IGBT collector‑emitter voltage (Vces) | 1200 V |
| IGBT collector current (Ic) | 100 A |
| IGBT peak collector current (Icp) | 200 A |
| IGBT power dissipation (Pc) | 601 W |
The module includes short‑circuit protection, over‑temperature protection with an internal temperature sensor, and drive‑voltage undervoltage protection.
It is recommended to use optocoupler isolation for the power supply to ensure system stability and safety.
The IPM is suitable for applications with switching frequencies up to 20 kHz.
