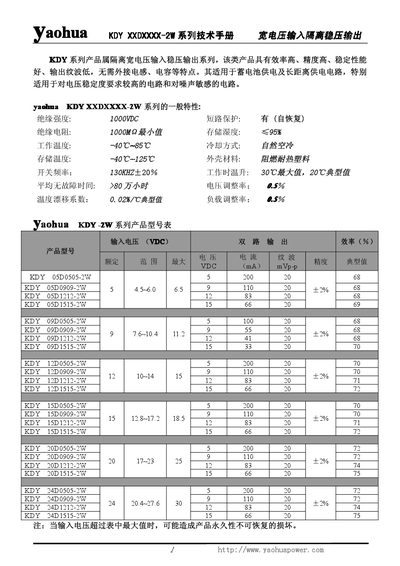

KDY series products are isolated wide voltage input stabilized output series, this kind of products have high efficiency, high accuracy, good stability performance, low output ripple, no need for external inductors, capacitors and other characteristics. It is suitable for battery power supply and long distance power supply circuits, especially for circuits with high voltage stability requirements and noise sensitive circuits.
The KDY series provides high efficiency, high precision, low output ripple and does not require external inductors or capacitors. It is suited for battery‑powered and long‑distance power‑supply circuits, especially where voltage stability and low noise are critical.
The manual includes load recommendations (30‑80 % of full load for optimal performance, with a minimum ~20 % load when idle), short‑circuit protection details, ripple mitigation advice, and warnings against parallel operation and reverse‑polarity connection. Installation and wiring guidelines are also provided. This manual is written in Chinese.
| Insulation Strength | 1000 VDC |
|---|---|
| Short‑Circuit Protection | Yes (self‑recovering) |
| Insulation Resistance | 1000 MΩ |
| Storage Humidity | ≤95 % |
| Operating Temperature | -40 °C ~ 85 °C |
| Cooling Method | Natural Air Cooling |
| Switching Frequency | 130 kHz ±20 % |
| Maximum Temperature Rise | 30 °C |
| Voltage Regulation | ±0.5 % |
| Temperature Drift Coefficient | 0.02 %/°C |
| Load Regulation | ±0.5 % |
Yes, the output stage includes self‑recovering short‑circuit protection.
Parallel operation is not recommended for this module.
A Schottky diode should be placed before the input to protect against reverse polarity.
