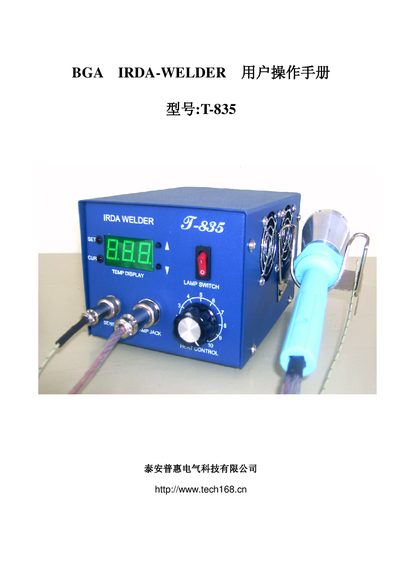

BGA IRDA-WELDER User Operation Manual, mainly introduces the features, parameters, main components, installation steps, operating instructions, precautions, warranty commitments and other content of the product.
The IRDA-WELDER T-835 is a handheld infrared heating tool designed for BGA, SMD and other flat components. It features a hand‑held lamp body, adjustable temperature up to 350 °C, and a 300 W power rating, allowing precise and uniform heating without hot‑air flow.
The manual covers product features, main parameters, component descriptions, installation steps, operating instructions, precautions, and warranty details. It guides users through connecting the infrared lamp and sensor, setting temperature, performing rework on various chip packages, and maintaining the equipment for reliable long‑term use. This manual is written in Chinese.
| Rated Voltage and Frequency | AC220V/AC110V, 50‑60 Hz |
|---|---|
| Overall Power | 300 W |
| Infrared Lamp Power | 100 W |
| Heating Size | Φ35 mm |
| Temperature Range | 0 °C – 350 °C |
The unit operates on AC220 V or AC110 V at 50‑60 Hz.
Use the temperature adjustment knob on the front panel to set the lamp temperature between 0 °C and 350 °C.
The whole machine is covered by a one‑year warranty with lifetime repair service.
Allow the fan to cool before turning off the power and keep the ventilation openings clear.
