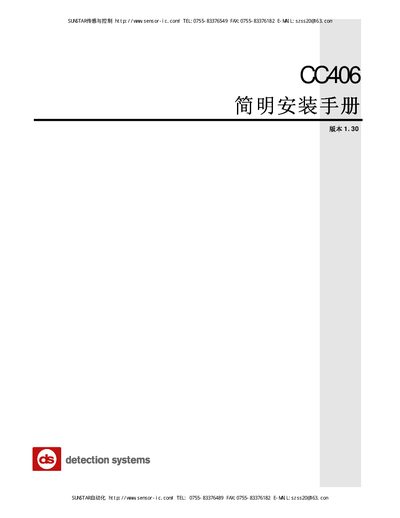

CC406 Installation manual, introduces the product features, performance indicators, system diagrams, system operation methods, system installation and debugging methods, basic system programming and advanced system application programming, etc.
The CC406 is an alarm communication control host designed for security systems. It supports up to eight user passwords, wireless remote buttons, dual reporting to alarm centers, and telephone‑based remote arming.
The manual covers safety notices, system functions, performance specifications, wiring diagrams, keypad operation, installation and commissioning procedures, basic and advanced programming, and troubleshooting tips. This manual is written in Chinese.
| Operating Temperature | 0 ℃ ~ 45 ℃ |
|---|---|
| Operating Humidity | 10 % ~ 95 % |
| AC Power Input | 18 V ~ 22 V, 1.3 A |
| Standby Current | 65 mA |
| Alarm Current | 115 mA |
| Power Output | DC 12 V 1 A |
| Backup Battery | DC 12 V, 1.2 Ah ~ 6.5 Ah, rechargeable |
| Dimensions | 306 mm × 262 mm × 84 mm |
| Weight | 2.5 kg |
| Keyboard Current | 60 mA per keypad, max 1 A |
| Alarm Output Port | DC 12 V, 400 mA |
| Relay Output Port | Max load 1 A DC 30 V |
The host can use eight user passwords, with the first password being the master code.
The default installation password is 1234.
