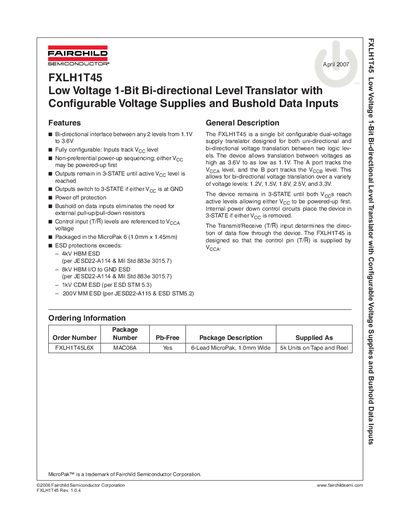

The FXLH1T45 is a low voltage 1-bit bi-directional level translator with configurable voltage supplies and bushold data inputs. It allows for bi-directional interface between any two levels from 1.1V to 3.6V. The device is fully configurable and the inputs track the VCC level. It has non-preferential power-up sequencing and power off protection. The outputs remain in 3-STATE until the active VCC level is reached. It also has bushold on data inputs to eliminate the need for external pull-up/pull-down resistors. The control input levels are referenced to the VCCA voltage. The device is packaged in the MicroPak 6 and has ESD protections exceeding various standards.
The FXLH1T45 is a single‑bit, bi‑directional level translator that operates between 1.1 V and 3.6 V. It features configurable voltage supplies, Bushold data inputs that remove the need for external pull‑up/pull‑down resistors, and non‑preferential power‑up sequencing.
The device is supplied in a 6‑lead MicroPak package (1.0 mm wide) and includes detailed electrical characteristics, pin assignments, absolute maximum ratings, and recommended power‑up/down procedures for reliable integration into low‑voltage logic systems.
| Supply Voltage Range | 1.1 V to 3.6 V |
|---|---|
| Port A Input Voltage Range | 0.0 V to 3.6 V |
| Port B Input Voltage Range | 0.0 V to 3.6 V |
| High‑Level Output Current (3.0 V‑3.6 V) | +24 mA |
| Package | 6‑Lead MicroPak, 1.0 mm wide |
Bushold on the data inputs eliminates the need for external pull‑up or pull‑down resistors.
The device can tolerate supply voltages from –0.5 V to +4.6 V on both Veca and Vecp pins.
