FP-08 programming panel is the programming tool for the PLCs from Delta, which can be used to edit, run, monitor, forced set/reset, enable/disable PLC programs.

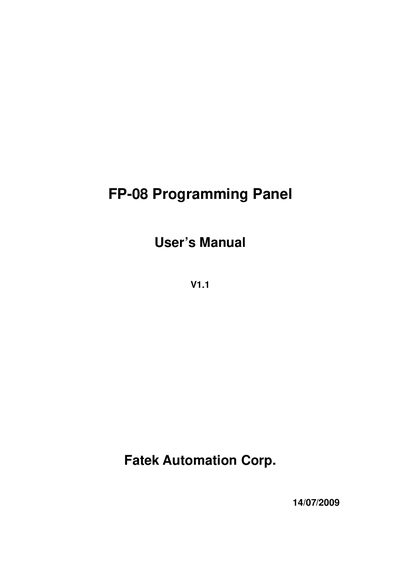

This manual describes the FP-08 programming panel, a handheld device used to edit, run and monitor programs on Fatek PLCs. It covers the panel’s physical appearance, keypad groups, the 1 M‑bit FLASH memory pack, and the RS‑232 COM port for OS updates.
The document explains how to connect the panel to a PLC via the dedicated communication cable, how to edit ladder and register data, monitor digital status and register values, and control PLC run/stop functions. Flowcharts and key‑sequence tables illustrate each operation mode.
| Memory pack capacity | 1 M‑bit FLASH ROM |
|---|---|
| LCD display | 16 × 2 characters |
| RS‑232 COM port function | Supports OS version update |
Download the PP Boot software and the latest FP‑08 OS from the Fatek Technical Support site, connect the panel via the RS‑232 port, and run the OS Update command.
Connect the FP‑08 to the PLC using the unique FP‑08 communication cable (FBs‑232p0‑9M‑150) that links the panel’s mini‑DIN connector to the PLC’s D‑SUB port.
Enter STATUS/DATA MONITORING mode; the panel displays the status of digital points such as X, Y, M and S addresses, and you can force or enable/disable each point using the keypad.
