OMATE DIGITAL, located in Haidian District, Beijing, has launched a bidirectional audio and video network video codec based on dedicated network or broadband network transmission. The device is developed with embedded system and adopts professional-grade audio and video codec chips, which can achieve high-quality remote audio, video, and data transmission. The product supports multiple video encoding formats and has good video real-time performance and unique forwarding function. In addition, the product also provides functions such as remote video monitoring and comprehensive network management system.
The VS200 is a network video codec from OMATE that supports MPEG2, MPEG4 and H.264 formats for two‑way audio‑video transmission over private or broadband networks. It offers flexible bitrate modes, low latency encoding, and a built‑in storage option with IDE hard drive.

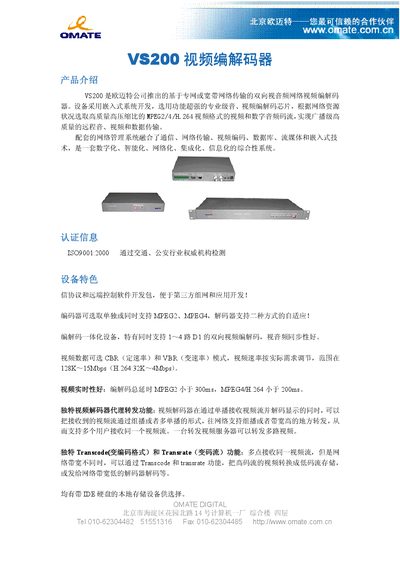

The document describes system functions such as remote video monitoring, multi‑stream support, network management via Telnet/Web, and various I/O interfaces. Technical specifications, installation dimensions, power options, and environmental ratings are also provided. This manual is written in Chinese.
| Supported video codecs | MPEG2, MPEG4, H.264 |
|---|---|
| Video bitrate | 128 Kbps – 15 Mbps (CBR/VBR) |
| Maximum video channels | 8 |
| Audio sample rates | 32 kHz, 44.1 kHz, 48 kHz |
| Power consumption | 8 W (typical) |
| Operating temperature | -20 °C to 70 °C |
| MTBF | 200 000 – 500 000 hours |
| Network interface | 10/100 Mbps RJ45 |
| Video output format | PAL/NTSC switchable |
It supports MPEG2, MPEG4 and H.264 video codecs.
The VS200 can transmit video at bitrates from 128 kbps up to 15 Mbps in either constant or variable bitrate mode.
The device can handle up to 8 simultaneous video channels.
It can be powered by 220 VAC or 12 VDC at 50 Hz.
