VIPA CP143 H1/TCP/IP User Manual

This manual describes applications of the CP143 H1 / TCP/IP, including installation, configuration, and operation.

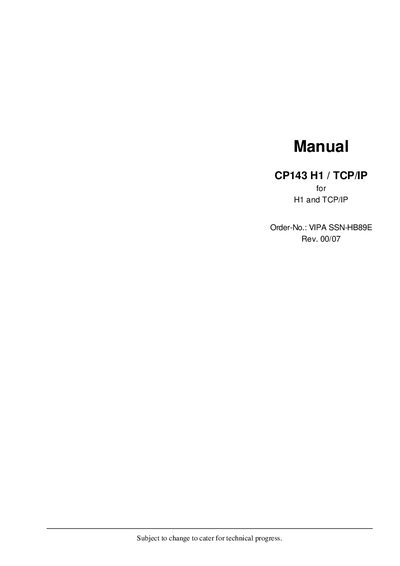

VIPA CP143 H1/TCP/IP User Manual - cover page
Brand
CP143
Category
Automation control Equipment
Document type
User Manual
Language
English
Pages
210
File format
PDF
File size
3.1 MB
Published
13 January, 2012
Updated
30 September, 2023
MD5 checksum
54442B49D124DAA4976F69D953DC710B
PDF
VIPA CP143 H1/TCP/IP User Manual PDF

About this manual

This manual describes the CP143 H1 and CP143 TCP/IP modules, which are plug‑compatible with a range of Siemens PLCs. It covers safety and handling, the construction of the modules, and the operation of the H1 and TCP/IP communication protocols.

The document includes chapters on network planning, hardware layout, software configuration, commissioning procedures, and troubleshooting. Detailed information on Ethernet cabling, socket and plug positions, jumper settings, and status indicators is provided to assist users in setting up and maintaining the modules.

What's inside

  • Introduction
  • Communication protocols
  • Network planning
  • Hardware layout of CP143 H1/TCP/IP module
  • Software configuration
  • Commissioning
  • Plug‑in slots and start‑up properties
  • Error messages and troubleshooting

Specifications

PLC compatibilityAG‑115U through AG‑188U
Cooling requirementNo forced air ventilation needed

Frequently asked questions

Which PLC models are compatible with the CP143 modules?

The CP143 H1 and TCP/IP modules are plug‑compatible with any PLC from AG‑115U through AG‑188U.

Does the CP143 module require forced air cooling?

No, the module does not require forced air ventilation.

What topics are covered in the manual?

The manual covers safety, hardware construction, communication protocols, network planning, software configuration, commissioning, and troubleshooting.
