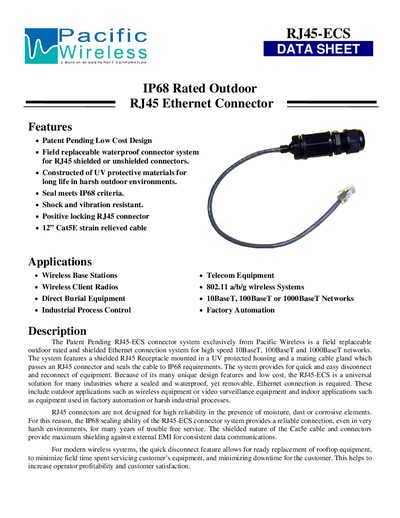

This is a PDF document about IP68 outdoor RJ45 Ethernet connector. The connector is manufactured by Pacific Wireless and has features such as waterproof, shockproof, and ultraviolet protection. It is suitable for wireless base stations, telecom equipment, wireless client radios, 802.11 a/b/g wireless systems, direct burial equipment, 10BaseT, 100BaseT or 1000BaseT networks, industrial process control, factory automation and other occasions.
The RJ45‑ECS connector system from Pacific Wireless provides a rugged, waterproof solution for Ethernet connections in harsh outdoor and industrial environments. It features a UV‑protected housing, positive locking bayonet coupling, and a field‑replaceable design for both shielded and unshielded RJ45 connectors.
Designed for 10BaseT, 100BaseT, and 1000BaseT networks, the system offers IP68 sealing, shock and vibration resistance, and a temperature range from –40 °C to +85 °C, making it suitable for wireless base stations, telecom equipment, and factory automation applications.
| Network Compatibility | 10BaseT, 100BaseT, 1000BaseT |
|---|---|
| Cable Category | CAT5e per TIA/EIA 568B |
| IP Rating | IP68 |
| Mating Cycles | >500 |
| Temperature Range | -40 °C to +85 °C |
| Flammability | UL94 V‑0 |
| Overall Size (L x Dia) | 95 mm x 30 mm |
| Weight | 57 g |
The connector meets IP68 sealing criteria for waterproof protection.
It is rated for more than 500 mating cycles.
It operates from –40 °C up to +85 °C.
The connector supports 10BaseT, 100BaseT, and 1000BaseT networks.
