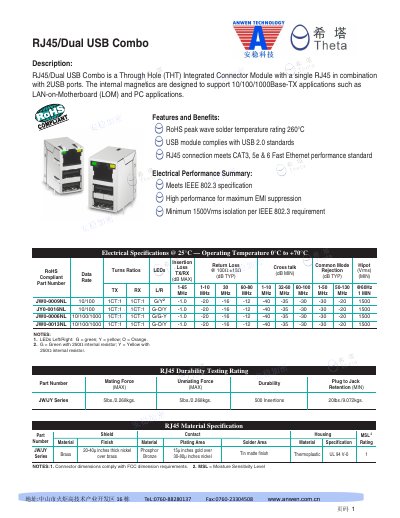

The document describes an RJ45/Dual USB combo connector module that complies with the RoHS peak wave solder temperature rating of 260°C. It features USB 2.0 standards and meets the CAT3, 5e, and 6 Fast Ethernet performance standards. It also meets the IEEE 802.3 specification, providing high performance for maximum EMI suppression and a minimum 1500Vrms isolation. The module is designed for 10/100/1000Base-TX applications, such as LAN-on-Motherboard (LOM) and PC applications.
The Philips RJ45/Dual USB Combo is a through‑hole integrated connector module that combines a single RJ45 port with two USB 2.0 ports. It supports 10/100/1000Base‑TX Ethernet applications and complies with IEEE 802.3, CAT3/5e/6 standards, offering high EMI suppression and 1500 Vrms isolation.
The manual provides electrical and mechanical specifications, LED indications, schematic diagrams for each model (0009NL, 0016NL, 0006NL), and PCB layout recommendations for optimal performance in desktop PC, embedded and multi‑port systems.
| Operating Temperature | 0 °C to +70 °C |
|---|---|
| Insertion Durability | 500 insertions |
| Isolation | Minimum 1500 Vrms |
| Data Rate | 10/100/1000 Mbps |
| LED Colors | Green, Yellow, Orange |
The module operates from 0 °C up to +70 °C.
It is rated for at least 500 insertion cycles.
The connector provides a minimum isolation of 1500 Vrms.
The module has green, yellow, and orange LEDs.
