KC132P is a 32-port dual-interface network CAT5 IP KVM remote computer switch, which supports 1 set of screen, keyboard and mouse to control 32 computers at the same time. The switch has 32 RJ-45 interfaces built-in, and can further increase the number of ports through cascade. It can be connected to computers via CAT5/CAT5E/CAT6 UTP cables, with the maximum distance up to 150 meters. It can also control remote servers via the Internet. The security control mechanism (SSL), password protection, OSD menu and support for multiple hot key combinations make your control more handy.
The KC132P is a CAT5 IP KVM switch that lets one set of keyboard, video and mouse control up to 32 computers. It includes 32 RJ‑45 ports and supports both PS/2 and USB interfaces, with a maximum cable length of 150 m using CAT5/5E/6.

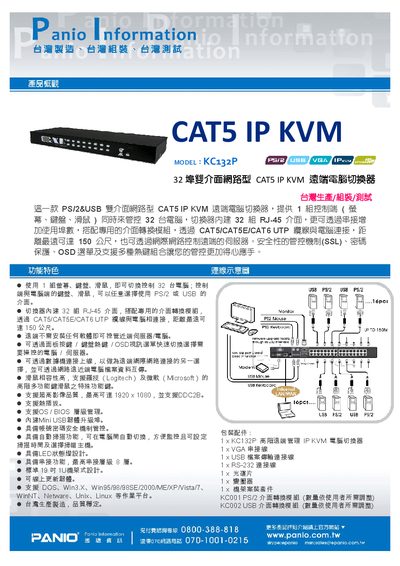

The device offers hot‑plug capability, OS/BIOS‑level management, a mini‑USB upgrade port, and supports video resolutions up to 1920 × 1080. It can be rack‑mounted in a standard 19‑inch 1U chassis and daisy‑chained up to eight levels. This manual is written in Chinese.
| Maximum computers controlled | 32 |
|---|---|
| RJ‑45 ports | 32 |
| Supported interfaces | PS/2 & USB |
| Maximum video resolution | 1920 × 1080 |
| Mini‑USB upgrade port | Present |
| USB file transfer port | 1× USB |
| RS‑232 port | 1× RS‑232 |
| Rack mount size | 19‑inch 1U |
| Maximum daisy‑chain levels | 8 |
It can control up to 32 computers simultaneously.
It supports video resolutions up to 1920 × 1080 with DDC2B.
