DZEH-K80 series 1000W electric car dedicated constant current single output, with input overvoltage, undervoltage, overcurrent, short circuit protection, can be used as a charger, shock resistance design, professional for on-board work design, enhanced electromagnetic compatibility design, can work in strong electromagnetic environment, multi-protection function design, ultra-small volume, high power density design, integrated encapsulation, can be waterproof, shockproof and anti-corrosion.

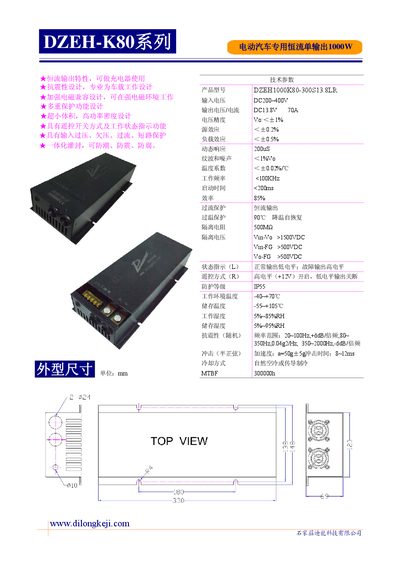

The Dilong DZEH‑K80 series is a constant‑current driver rated at 1000 W. The manual provides details on electrical characteristics, operating limits, and installation guidelines. It includes performance curves, temperature coefficients, and recommended cooling methods.
Key features include a wide input voltage range (Vin‑Vo >1500 VDC), high voltage isolation (Vin‑FG >500 VDC, Vo‑FG >500 VDC), and robust protection functions such as over‑current and short‑circuit protection. The device operates from –40 °C to +70 °C and can be cooled by natural air flow or forced cooling. This manual is written in Chinese.
| Power Output | 1000 W |
|---|---|
| Input Voltage (Vin‑Vo) | >1500 VDC |
| Input Voltage (Vin‑FG) | >500 VDC |
| Output Voltage (Vo‑FG) | >500 VDC |
| Operating Frequency | <100 kHz |
| Temperature Coefficient | 0.029 %/°C |
| MTBF | 300 000 h |
| Operating Temperature Range | -40 °C to +70 °C |
| Storage Temperature Range | -5 °C to +105 °C |
| Cooling Method | Natural air cooling or forced cooling |
The driver accepts an input voltage greater than 1500 VDC (Vin‑Vo >1500 VDC).
It provides a constant‑current output of 1000 W.
It operates from –40 °C to +70 °C.
The driver can be cooled by natural air cooling or forced cooling.
