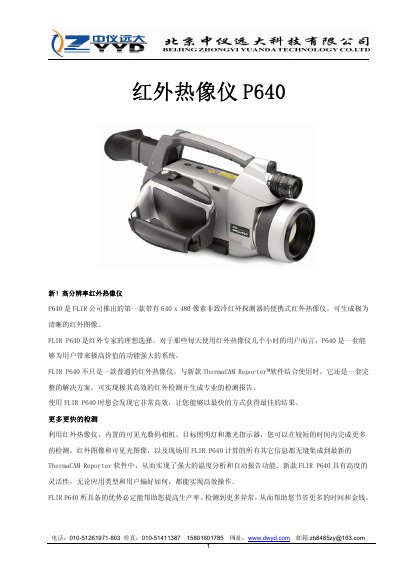

The FLIR P640 is a high-resolution infrared thermal imaging camera that is FLIR's first portable thermal imager with a 640 x 480 pixel uncooled microbolometer detector that produces extremely clear infrared images. FLIR P640 is the ideal choice for infrared experts. For those who use infrared thermal imaging cameras for several hours every day, P640 is a powerful system that can bring great value to users. FLIR P640 is not just an ordinary infrared thermal imaging camera. When used with the new ThermaCAM Reporter™ software, it is a complete solution that enables highly efficient infrared detection and generates professional inspection reports. When using FLIR P640, you will find that it is very efficient, allowing you to get the best results in the fastest way.
This manual describes the FLIR P640 high‑resolution infrared thermal imager, a portable device with a 640 × 480 non‑cooled detector. It explains how to use the built‑in digital camera, illumination lamp, laser pointer, and the ThermaCAM Reporter™ software for image analysis and reporting.
The document also lists technical specifications, calibration procedures (atmospheric, optical, emissivity), storage options, power options, environmental limits, and available accessories such as lenses and external power adapters. This manual is written in Chinese.
| Image resolution | 640 × 480 pixels |
|---|---|
| Spectral range | 7.5 µm – 13 µm |
| Temperature measurement range | -40 °C to +500 °C (expandable to +1500 °C) |
| Frame rate | 30 Hz |
| Field of view (minimum focus) | 24° × 18° / 0.3 m |
| Spatial resolution (IFOV) | 0.65 mrad |
| Temperature resolution | 0.06 °C @ 30 °C |
| Digital zoom | 1 – 8× continuous |
| Weight | 1.7 kg |
| Dimensions (W × H × D) | 120 mm × 145 mm × 220 mm |
| Battery type | Rechargeable Li‑ion, replaceable on‑site |
| Battery runtime | 3 hours continuous operation |
| Storage media | Removable SD card (up to 256 MB) and internal RAM |
| Operating temperature | -15 °C to +50 °C |
| Storage temperature | -40 °C to +70 °C |
| Video output interfaces | RS170, CCIR/PAL, IEEE‑1394 (FireWire), USB |
The P640 can measure temperatures from –40 °C to +500 °C, with optional extensions up to +1500 °C.
The built‑in rechargeable Li‑ion battery provides about 3 hours of continuous operation.
Atmospheric and optical transmission corrections are applied automatically based on entered distance, ambient temperature, humidity, and sensor data.
