WR-1021-VD 1 VGA 1 in 2 out distributor is a long distance output product for VGA signals, supporting one short-distance VGA output and one CAT5 RJ45 network cable long-distance output. It uses 4 pairs of UTP CAT5 twisted-pair cables for long-distance transmission, replacing the original VGA transmission. CAT5(STP CAT 5) network cable effective distance can reach 300 meters.

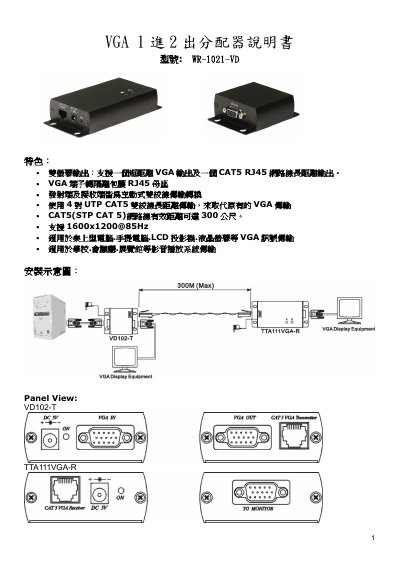

This manual describes the WR-1021-VD VGA 1‑in‑2‑out distribution unit. It supports a short‑range VGA output together with a long‑range CAT5 RJ45 output, allowing video transmission up to 300 m. The device is compatible with LCD projectors, monitors, and other VGA‑based displays commonly used in schools, museums, and AV systems.
Installation notes cover cable selection, skew mitigation, and power connections. The unit requires a 5 V DC supply (500 mA) and includes dimensions, operating temperature, and humidity limits for proper integration into AV installations. This manual is written in Japanese.
| Maximum resolution | 1600 x 1200 @85 Hz |
|---|---|
| Maximum transmission distance | 300 m (1000 ft) |
| Video bandwidth | 150 MHz |
| RGB analog bandwidth | 75 MHz, 0.7 Vp‑p |
| Horizontal frequency range | 30‑95 kHz |
| Vertical frequency range | 50‑180 Hz |
| VGA connector type | 15‑pin Mini D‑Sub (high density) |
| Cable interface | 1 × RJ‑45 |
| Power supply (VD102‑T) | 5 V DC 500 mA |
| Power consumption (TTA111VGA‑R) | 5 V DC 500 mA (external) |
| Maximum current (VD102‑T) | 350 mA |
| Operating temperature | 0 °C to 55 °C |
| Storage temperature | -20 °C to 85 °C |
| Maximum humidity | up to 95 % |
| Dimensions (VD102‑T) | 57.5 × 67 × 27 mm |
| Dimensions (TTA111VGA‑R) | 67 × 27 × 140 mm |
It supports up to 1600 × 1200 pixels at 85 Hz.
The device can transmit the signal up to 300 meters (approximately 1000 feet).
It requires a 5 V DC supply delivering 500 mA.
The unit operates from 0 °C to 55 °C and can be stored from –20 °C to 85 °C.
