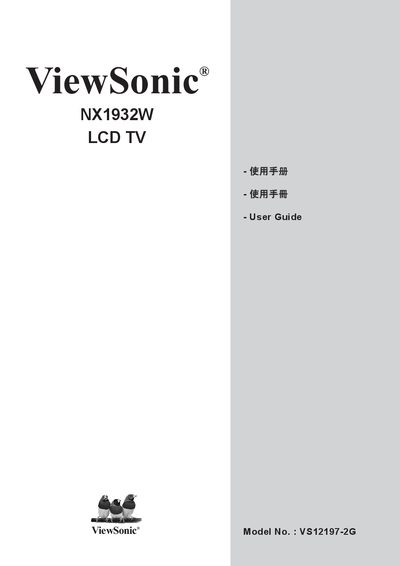

This document is a user guide for the ViewSonic® ViewSonic® NX1932W LCD TV, providing information on installation, basic operation, and menu functions of the product.
This manual covers everything you need to set up and use the ViewSonic NX1932W LCD TV, including important safety instructions, antenna grounding, wall‑mount installation, remote‑control functions, and basic operation of menus and inputs. Detailed diagrams of the front and rear panels help you identify ports such as HDMI, VGA, component, and audio connections.
Technical specifications, power requirements, environmental limits, and warranty information are listed in the specifications section, while a troubleshooting guide addresses common issues like no signal, picture problems, and power interruptions. Customer support contacts are provided for further assistance.
| LCD Type | 19.0" TFT Active Matrix RGB |
|---|---|
| Display Area | 410.4 mm (H) x 256.5 mm (V) |
| Power Voltage | 100-240 VAC, 50/60 Hz (auto switch) |
| Dimensions | 447.4 mm (W) x 397.0 mm (H) x 156.0 mm (D) |
| Weight | 5.0 kg (11.0 lb) |
| Speaker Output | 2 W x 2 |
| Standby Power Consumption | < 50 W (blue LED) < 2 W (amber LED) |
| Operating Temperature | 32°F to +104°F (0°C to +40°C) |
The TV operates on 100‑240 VAC, 50/60 Hz with an automatic voltage switch.
Check that the HDMI cable is securely connected to both the TV and the source device, ensure the source device is powered on, and verify the TV input is set to HDMI.
