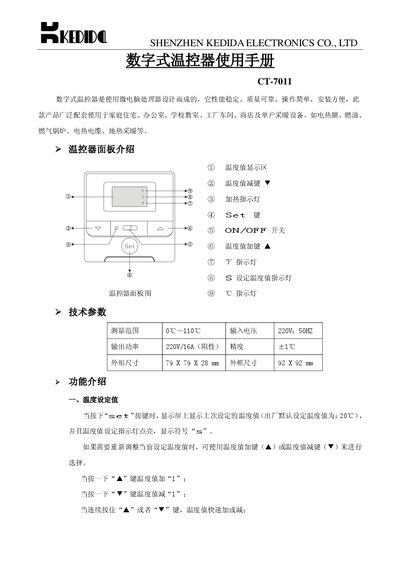

This is a digital thermostat user manual. The model number is CT-7011. The main function is to set the temperature value and support heating and cooling modes.
The CT-7011 is a micro‑computer‑controlled digital thermostat designed for residential, office, classroom, workshop and shop heating applications such as electric‑film, fuel, gas boilers, electric cable and floor heating. The manual describes the front‑panel layout, including temperature display, adjustment keys, mode indicators and power switch.
It explains how to set temperature values, select heating or cooling mode, install the unit in a wall box, and connect the load, power supply and temperature probe. Safety notes warn that the device operates on 220 V AC and must be installed with proper precautions. This manual is written in Chinese.
| Measurement range | 0 ℃ – 110 ℃ |
|---|---|
| Input voltage | 220 V, 50 Hz |
| Output power | 220 V / 16 A (resistive) |
| Dimensions (product) | 79 × 79 × 28 mm |
| Outer frame size | 92 × 92 mm |
E1 (flashing) indicates the temperature sensor is disconnected; E2 (flashing) indicates the temperature sensor is short‑circuited.
