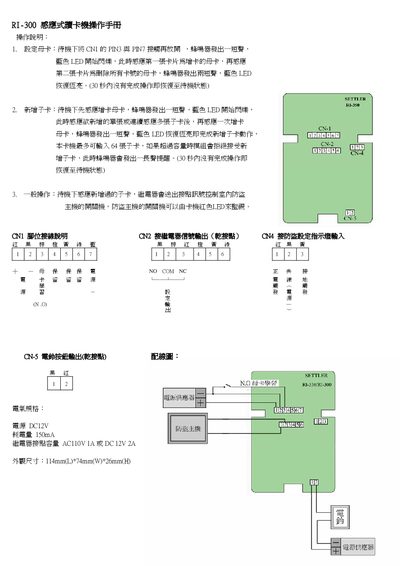

The RI-300 proximity card reader manual describes the operation steps and features of the product, including setting the master card, adding sub-cards, and general operations.
This manual provides step‑by‑step instructions for configuring the RI‑300 card reader. It covers setting the master card, adding up to 64 sub‑cards, and normal operation where the relay controls a security system and the red LED indicates the alarm status.
The document also includes wiring details for connectors CN1‑CN5, a wiring diagram, and the electrical specifications such as a 12 V DC supply, 150 mA current draw, relay contact ratings, and physical dimensions. This manual is written in Chinese.
| Power supply | DC12V |
|---|---|
| Dimensions | 114 mm (L) × 74 mm (W) × 26 mm (H) |
