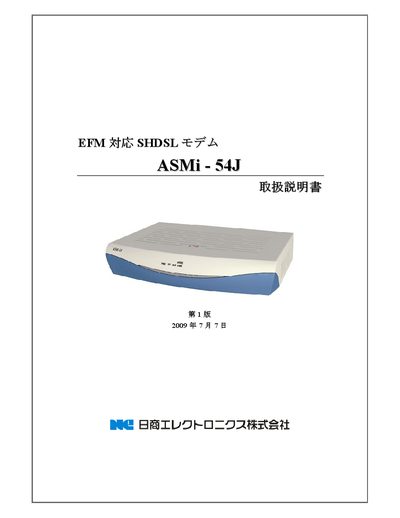

This manual introduces the use of NISSHO ELECTRONICS CORP. ASMi-54J products, including precautions, correct use methods, installation methods, etc.
This manual begins with safety precautions for the ASMi-54J, including warnings against stacking, using the correct power source, and handling static‑sensitive components. It also outlines proper disposal, support limits to Japan, and restrictions on use in medical or safety‑critical equipment.
The later sections cover installation environment checks, basic settings, login procedures, network and LAN configuration, SNMP setup, software upgrades, and detailed specifications such as modulation type, port types, power consumption, dimensions, and performance charts for distance and speed. This manual is written in Japanese.
| Modulation Type | TCPAM-16, TCPAM-32 |
|---|---|
| DSL Port | RJ-45 x1 |
| LAN Ports | RJ-45 x4 (MDI/MDI‑X auto‑recognition) |
| Control Port | RS‑232 DB9 male |
| DSL Speed (2‑wire) | 192 Kbps – 5 696 Kbps (step 64 Kbps) |
| DSL Speed (4‑wire) | 384 Kbps – 11 392 Kbps (step 128 Kbps) |
| Maximum Power Consumption | 5.8 W |
| Dimensions (W × D × H) | 217 mm × 170 mm × 43.7 mm |
| Weight | 700 g |
The device operates on AC 100 V power.
Support for the device is limited to Japan only.
Replace the adapter every 3–4 years when used in environments above 40 °C.
