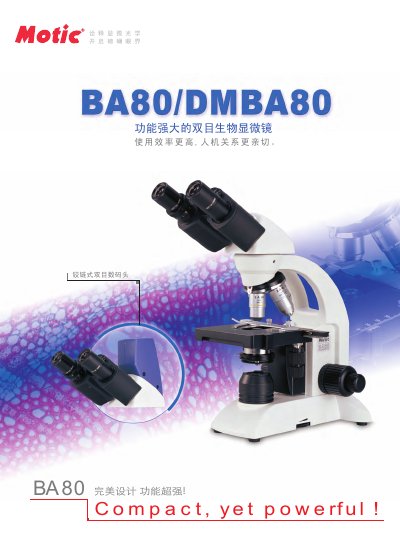

BA80/DMBA80 binocular biological microscope is a German DIN industrial standard microscope with a magnification of 40X~1000X and an integrated 200 million or higher pixel high-resolution digital camera system to ensure the rapid transmission of a large number of high-definition image data.
The BA80/DMBA80 is a dual‑ocular biological microscope featuring a hinge‑type digital head, low‑hand‑position focusing control, and an ergonomic layout that reduces user fatigue. It includes a 60 mW LED illumination system with adjustable brightness and a 6500 K color temperature for safe, low‑heat operation.
The optical system follows German DIN standards with magnification from 40× to 1000× (optional up to 1600×). It offers a high‑resolution 2 MP camera (1600×1200) with USB 2.0 output, automatic/manual white balance, and a frame rate of 10 fps. The microscope is certified to ISO 13485, ISO 9001, and ISO 14001 standards. This manual is written in Chinese.
| Magnification range | 40×~1000× (optional 40×~1600×) |
|---|---|
| LED power | 60 mW |
| LED color temperature | 6500 K |
| LED lifetime | ≥100 000 hours |
| Eyepiece | WF10X/18 mm wide‑field flat field |
| Camera interface | USB 2.0 |
| Data transfer rate | 24 Mp/s (8 bit), 12 Mp/s (10 bit) |
The BA80 provides a magnification range of 40× to 1000×, with an optional extension up to 1600×.
It allows focusing without raising the hand, reducing wrist strain and user fatigue.
