ScanPlus1800 series uses the latest patent technology to design a new generation of high-speed, high-brightness scanning engine, which makes it have high first-read rate and long depth of field barcode scanning. Beautiful shape and flexible interface provide great convenience.
The ScanPlus1800 series includes several models (1800SR, 1800VT, 1800PDF, 1800ST) that use the latest high‑speed, high‑brightness scanning technology. The scanners feature a compact design and versatile interfaces for easy integration.

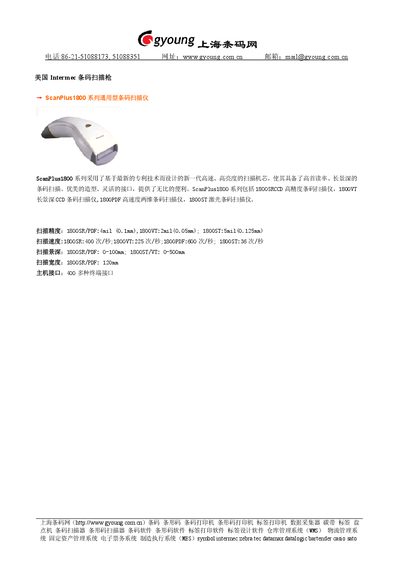

Key specifications such as scanning accuracy, speed, depth of field, and host interface are listed, helping users select the appropriate model for their application and understand performance limits. This manual is written in Chinese.
| Scanning accuracy | 0.1 mm (1800SR/PDF), 0.05 mm (1800VT), 0.125 mm (1800ST) |
|---|---|
| Scanning speed | 400 scans/s (1800SR), 225 scans/s (1800VT), 600 scans/s (1800PDF), 36 scans/s (1800ST) |
| Depth of field | 0‑100 mm (1800SR/PDF), 0‑500 mm (1800ST/WT) |
| Scanning width | 120 mm (1800SR/PDF) |
| Host interface | 400 series host interface |
The accuracy is 0.1 mm for the 1800SR/PDF models, 0.05 mm for the 1800VT, and 0.125 mm for the 1800ST.
The 1800SR model can scan at 400 scans per second.
