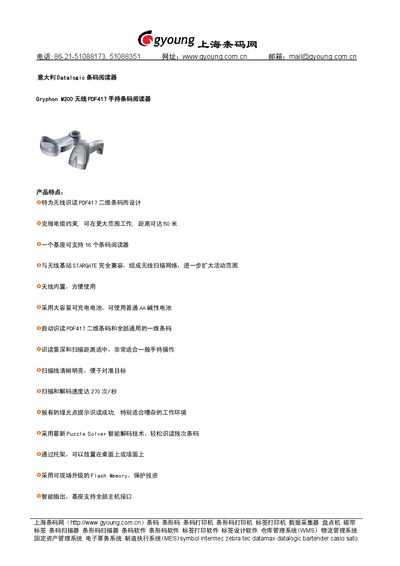

The Gryphon M200 is a wireless handheld barcode reader designed specifically for reading PDF417 2‑D barcodes. It eliminates cable constraints and can operate up to 50 meters from a STARGATE base station, with a single base supporting up to 16 readers.
Key features include a built‑in antenna, a large‑capacity rechargeable battery that also accepts standard AA alkaline cells, a green‑light indicator for successful reads, and flash memory that can be upgraded on site. The scanner achieves a decoding speed of 270 scans per second and provides smart output compatible with all host interfaces. This manual is written in Chinese.
| Wireless range | up to 50 m |
|---|---|
| Maximum readers per base | 16 |
| Scanning speed | 270 scans per second |
| Battery type | rechargeable large‑capacity, also accepts AA alkaline |
| Indicator | green light for successful read |
| Flash memory | upgradeable on site |
| Antenna | built‑in |
It can operate up to 50 meters from the base station.
A single base can support up to 16 barcode readers.
It uses a large‑capacity rechargeable battery and can also run on standard AA alkaline batteries.
The scanner decodes up to 270 barcodes per second.
