This product uses more integrated IC chips and advanced SMT surface element mounting technology as well as unique circuit shielding technology, so that the product has super anti-interference ability and reliability, and can work stably in a harsh electromagnetic interference environment for a long time.
This manual provides a complete overview of the Intelligence Equipment Meter, describing its integrated chip, SMT construction, and high interference immunity. It outlines the modular circuit design, dual‑display, and flexible signal routing options.

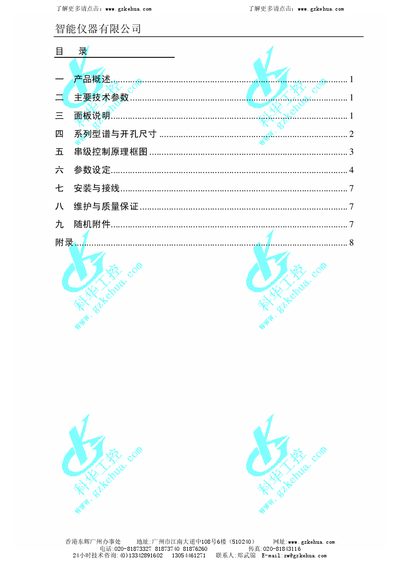

The document includes technical parameters, panel descriptions, dimension tables, cascade control principles, parameter settings, installation and wiring instructions, maintenance guidelines, and an appendix for output correction calibration. This manual is written in Chinese.
| Operating voltage | AC 85‑265V 50/60Hz or DC 24V |
|---|---|
| Relay contact capacity | AC 5A 240V or DC 5A 24V |
| Input impedance (voltage type) | >800 kΩ |
| Input impedance (current type) | >250 kΩ |
| DC output current | 24 V max 50 mA |
| Weight | ≈0.5 kg |
| Dimensions (model 1) | 160 mm × 80 mm × 115 mm |
Press the “ENT” key to toggle between manual and automatic operation.
