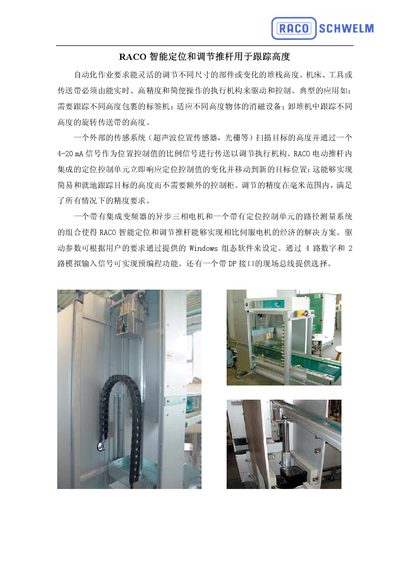

RACO Intelligent Positioning and Adjustment Rod is used for tracking height. It is an economical solution to achieve high-precision positioning without using servo motor.
The RACO intelligent positioning and regulating push rod provides high‑precision, real‑time height tracking for automated operations. It integrates a positioning control unit with an asynchronous three‑phase motor and an internal inverter, offering an economical alternative to servo motors.
The device accepts external sensor inputs such as ultrasonic or optical sensors and outputs a 4‑20 mA proportional signal. It supports 4 digital and 2 analog inputs, a DP‑interface fieldbus, and can be configured via supplied Windows configuration software. This manual is written in Chinese.
| Position control signal | 4‑20 mA proportional signal |
|---|---|
| Digital inputs | 4 channels |
| Analog inputs | 2 channels |
| Fieldbus option | DP interface |
| Motor type | Asynchronous three‑phase motor with integrated inverter |
| Positioning accuracy | within millimeter range |
It uses a 4‑20 mA proportional signal as the position control value.
Yes, drive parameters can be set using the provided Windows configuration software.
It uses an asynchronous three‑phase motor with an integrated inverter.
