XMT*8818 intelligent PID temperature controller is a high-performance anti-interference, high-reliability intelligent industrial regulator. The instrument adopts advanced CPU chip, has the characteristics of simple operation, reliable operation, high cost performance, and is widely used in machinery, chemical, ceramic, light industry, metallurgy, petrochemical, heat treatment and other industries of temperature automatic control system.
The XMT*8818 is an intelligent PID temperature regulator designed for industrial temperature control in sectors such as machinery, chemicals, ceramics, metallurgy, and heat treatment. It features a high‑performance CPU chip, simple operation, and reliable performance.

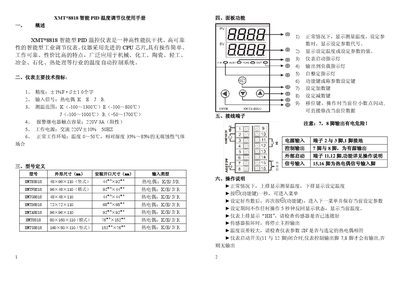

The manual covers technical specifications, model dimensions, panel functions, wiring terminals, detailed operation instructions, menu parameter settings, and warranty information, guiding users through installation, configuration, and maintenance of the instrument. This manual is written in Chinese.
| Accuracy | ±1% FS |
|---|---|
| Input Signal Types | Thermocouple K, E, J, R |
| Measurement Range (K) | -100~1300 °C |
| Measurement Range (E) | -100~800 °C |
| Measurement Range (J) | -100~1000 °C |
| Measurement Range (R) | -50~1700 °C |
| Alarm Relay Contact Capacity | 220 V 3 A (resistive) |
| Power Supply | AC 220 V ±10% 50 Hz |
| Operating Temperature Range | 0 °C ~ 50 °C |
| Relative Humidity Range | 35 % ~ 85 % |
Press the function key for one second to enter the menu.
The alarm relay contacts can handle 220 V at 3 A for resistive loads.
The instrument is covered by an 18‑month warranty from the date of purchase.
Check that the temperature sensor is properly connected.
