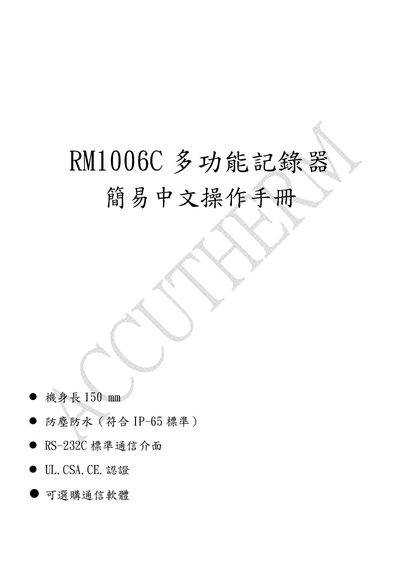

RM1006C multi-function recorder simplified Chinese operation manual, including product model, function, specification, storage environment, operation key description, wiring description, operation before preparation, start/stop recording, digital printing, change display screen, common function settings and other content.
This manual describes the RM1006C multi‑function recorder, including its accessories, physical dimensions, environmental limits, and available communication interfaces. It details the operation keys, wiring options, and preparation steps required before use.
The document also covers the various printing modes, input range settings, and provides reference tables for temperature conversion and parameter flow diagrams, helping users configure and maintain the device effectively. This manual is written in Chinese.
| Device length | 100 mm |
|---|---|
| Ingress protection rating | IP‑65 |
| Communication interface | RS‑232C (standard) |
| Certifications | UL, CSA, CE |
| Power consumption | 23 VA max at 100 VAC |
| Recording paper width | 114 mm |
| Operating temperature range | -20 °C to 50 °C |
| Maximum relative humidity | 95 % RH |
| Sample period | 29 |
| Sample interval per channel | 10 s / 6 CH |
| Recording paper length (stock) | 16 m (original) / 24 m (optional) |
The device includes an RS‑232C standard interface and optional RS‑485 and USB interfaces.
The recorder consumes up to 23 VA at 100 VAC.
