KD673 672 671 670 AC791 790 CD540 MR673 manual V11

This manual introduces the basic operation methods and precautions for the KD673_672_671_670_AC791_790_CD540_MR673 digital video recorder.

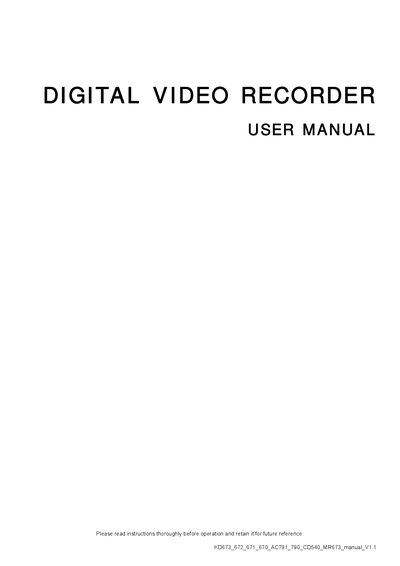

KD673 672 671 670 AC791 790 CD540 MR673 manual V11 - cover page
Brand
KD673
Category
Other Electronics
Document type
User Manual
Language
English
Pages
108
File format
PDF
File size
7.2 MB
Published
07 January, 2012
Updated
30 September, 2023
MD5 checksum
9C9314D3D284D3B94DAEDB4D72D95CB7
PDF
KD673 672 671 670 AC791 790 CD540 MR673 manual V11 PDF

About this manual

This manual provides detailed instructions for installing, configuring, and operating the KD673 digital video recorder. It includes safety warnings, hardware connections, menu navigation, and firmware upgrade procedures.

The guide also contains appendices with pin configurations, RS485 protocol details, compatible USB flash drive and SATA HDD lists, specifications, and a recording time table for various video quality settings.

What's inside

  • Special Notes
  • Front and Rear Panel
  • Connection and Setup
  • Basic Operation
  • Advanced Operation
  • Remote Operation
  • Appendix 1 Pin Configuration
  • Appendix 2 Troubleshooting
  • Appendix 5 Specifications
  • Appendix 6 RS485 Protocol

Specifications

VGA Output Resolutions800 × 600, 1024 × 768 (default), 1280 × 1024, 1440 × 900, 1400 × 1050, 1680 × 1050, 1600 × 1200
Firmware Version1112-1036-1013-1024-0a-0000

Frequently asked questions

How do I change the VGA output resolution?

Go to ADVANCE > DISPLAY and select VGA OUTPUT, then choose one of the seven resolution options.

What is the default admin password for the DVR?

The default admin password is 0000.

Can I use a UPS with the DVR?

Yes, it is recommended to use an Uninterruptible Power Supply (UPS) for continuous operation.
