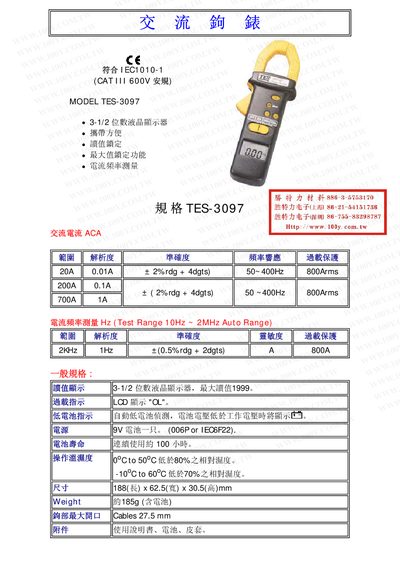

TES-3097 AC Hook Meter is a product that meets IEC1010-1 (CAT III 600V safety standard), with 3-1/2 digit LCD display, portable, read value lock, maximum value lock function, AC current ACA current frequency measurement (Test Range 10Hz ~ 2MHz Auto Range).
This manual describes the TES-3097 median LCD display, including its measurement capabilities, power requirements, and physical characteristics. It outlines safety compliance with IEC1010-1 (CATIII 600V) and provides guidance on battery usage and low‑battery detection.
Key features include current and frequency measurement ranges, overload protection, battery life of about 100 hours, and dimensions of 188 mm × 62.5 mm × 30.5 mm. Accessories such as the user guide, battery, and mounting hardware are also listed. This manual is written in Japanese.
| Model | TES-3097 |
|---|---|
| Frequency Measurement Range | 10 Hz ~ 2 MHz (auto range) |
| Power Supply | 9 V battery (single) |
| Battery Life | Approximately 100 hours continuous use |
| Dimensions (L × W × H) | 188 mm × 62.5 mm × 30.5 mm |
| Weight | ≈ 185 g (including battery) |
It is powered by a single 9 V battery.
The battery provides about 100 hours of continuous use.
