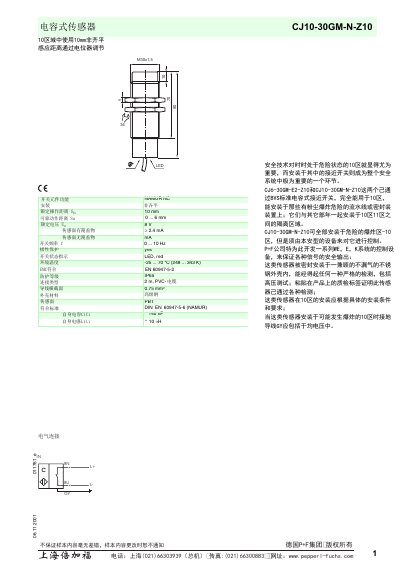

CJ 10-30GM-N-Z10 is a P+F company's capacitive proximity switch used in zone 10. It uses a sealed stainless steel shell that can withstand high pressure testing and can be safely installed in zone 10.
The CJ10-30GM-N-Z10 is a capacitive proximity sensor designed for hazardous area 10 environments. It provides a non‑contact sensing distance of 10 mm, adjustable via a potentiometer, and operates at 8 V with a minimum current of 2.4 mA. The device complies with EN 60947‑5‑2 and DIN EN 60947‑5‑6 standards and features an IP65 protection rating.
Installation requires the grounding wire (GY) to be incorporated into the equipotential system. The sensor includes LED status indication, supports NAMUR NC interface, and is suitable for use in dust‑explosive zones with appropriate sealing and wiring specifications. This manual is written in Chinese.
| Rated operating distance | 10 mm (non‑contact, adjustable) |
|---|---|
| Wire cross‑section | 0.75 mm² (PVC) |
The sensor provides a 10 mm non‑contact operating distance, which can be adjusted with a potentiometer.
The grounding wire (GY) must be included in the equipotential system when the sensor is installed in a hazardous area.
